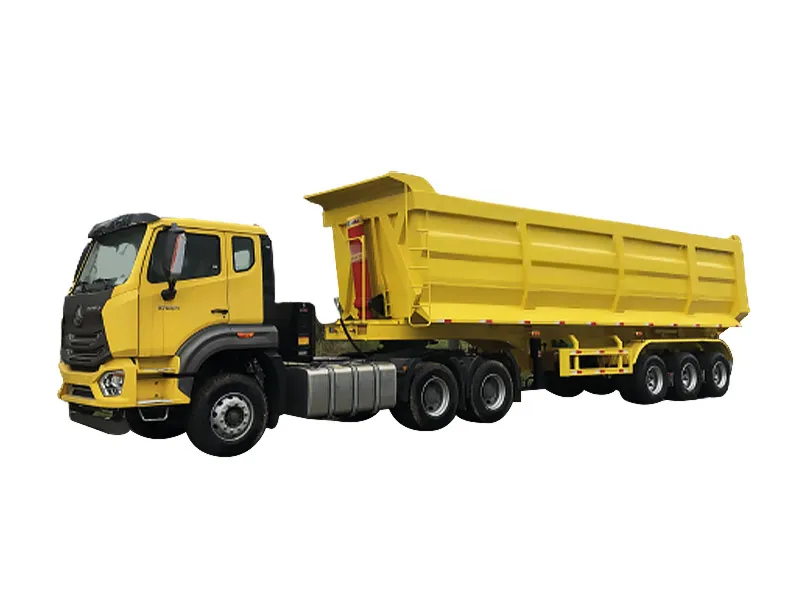

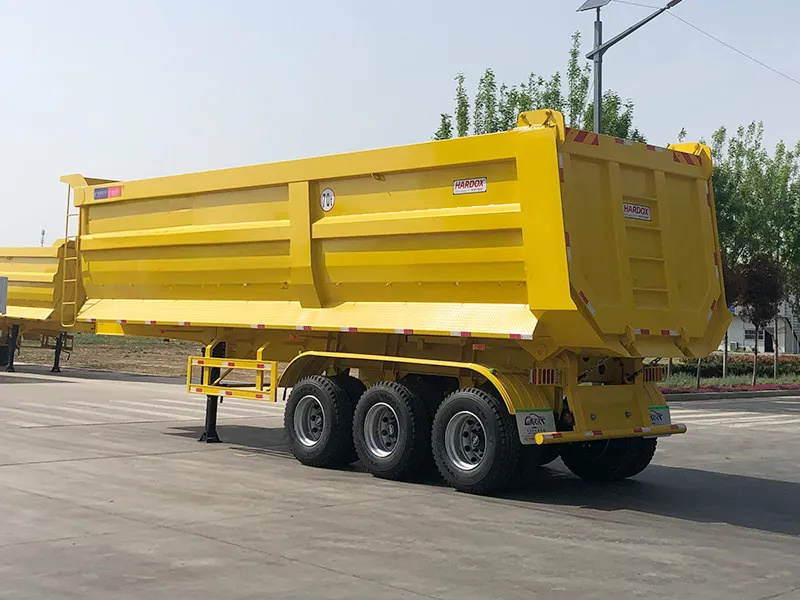

| Model Name | Tri-Axle U-Shape Hardox Wear-Resistant Steel Rear Tipper Dump Semi-Trailer |
| Axle | 3 pcs 13T heavy-duty axles (FUWA optional), drum brake, ABS system standard equipped |
| Overall Dimension | Length 11000mm × Width 2550mm × Body Height 1600mm (Volume customizable 30–60 CBM) |
| Body Material | 8mm Hardox450 wear steel for floor, 6mm Hardox450 for side walls; thickened high-tensile manganese steel frame |
| Hydraulic Lifting System | Front-mounted heavy-duty hydraulic cylinder, high-pressure oil pipes, stable synchronous lifting without tilting |
| Main Chassis Beam | 14mm manganese steel upper/lower flanges, 8mm web plate, full submerged arc welding, 3-layer anti-corrosion coating after sand blasting |
| Tire Size | 12R22.5 heavy-duty mine tubeless tires, 12 tires + 1 spare tire |
| King Pin | Standard 2"(50mm) JOST king pin, 3.5"(90mm) customizable |
| Empty Curb Weight | Approx. 7.2 tons |
| Max Gross Vehicle Weight | 40,000KG |
| Rated Payload | 32,800KG |
| Unloading Method | Rear full tipper dumping, lifting angle 45°–48°, clean discharge with minimal residue |
| Standard Safety Fittings | Front/side/rear anti-collision guardrails, reflective safety marks, LED marker lights, hydraulic safety lock valve, parking support legs |
| Optional Upgrades | Waterproof tarpaulin/hydraulic automatic cover, wider oversize tires, air suspension, exhaust heating to prevent material sticking, higher side boards for larger volume |
| Applicable Materials | Sand, iron ore, muck, coal, construction waste, earthwork, crushed stone aggregate |
